Adding printers to Windows PCs and Macs

For Macs:

If using wifi, make sure you are connected to FHU, the secure wireless on campus.  FHU_Guest will not access printers.

Open System Preferences - Printers & Scanners

Click the + sign in the lower left corner to add a new printer.

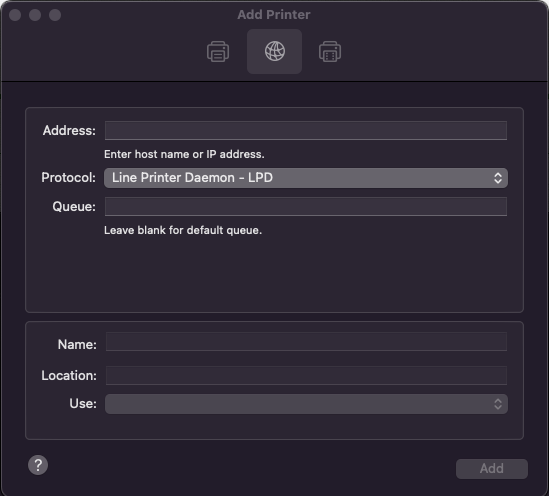

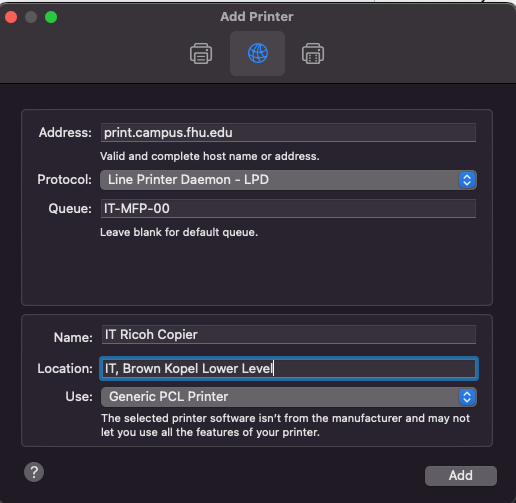

When the Add Printer dialog box appears, choose the globe looking icon from the top of the window.

In the Address: field, type print.campus.fhu.edu

Protocol: needs to be Line Printer Daemon - LPD

Queue: will be the print queue on the Print server.  Please see the list below the instructions for the Printer in your area..

By default, the Name: field will be the same as the Address: field.  You can rename if needed.

Please fill out the Location: field with building, floor, and department.

By default, the Use: field will choose the Generic PostScript Printer as the software driver.  Change this to the Generic PCL Printer option.

The Generic PCL Printer driver will provide almost all printing functions.

Click Add at the bottom right corner.

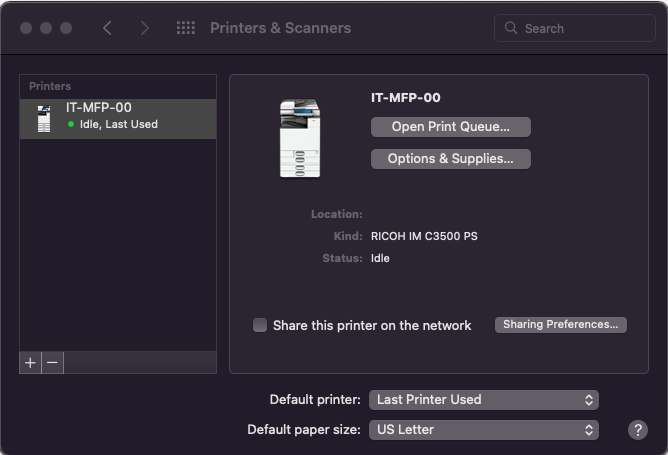

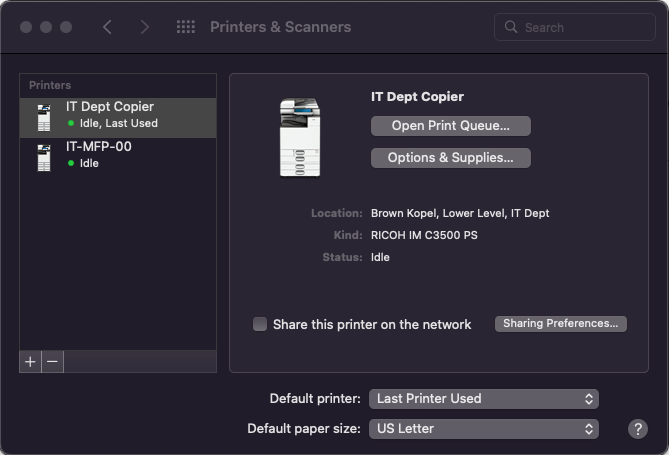

You should now see your new printer listed in the Printers & Scanners window.

Print a test page to verify the connection to the printer.

For Windows PCs:

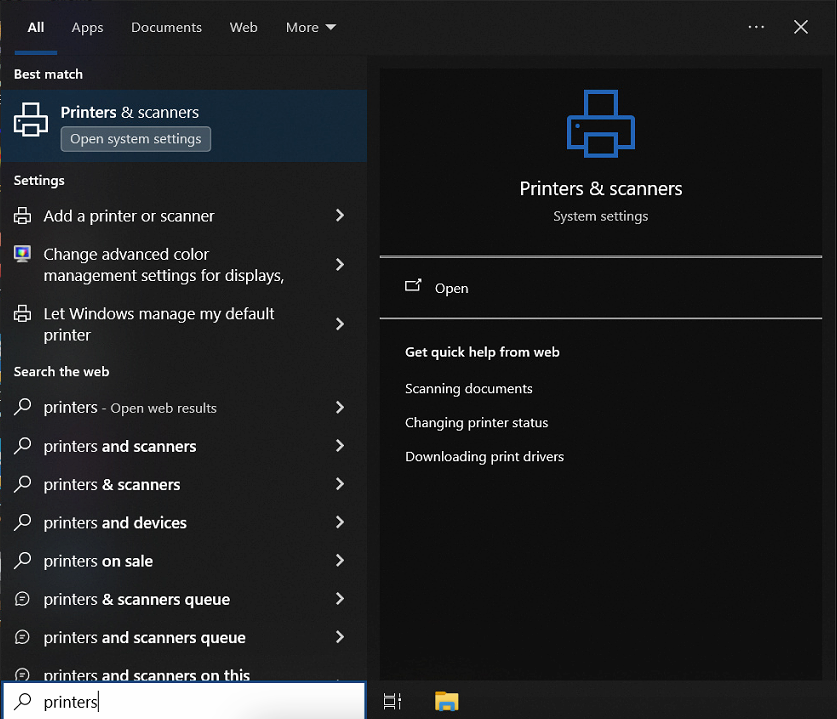

Click on the Start button and type Printers.  You should see the option for Printers and Scanners.  Click to open.

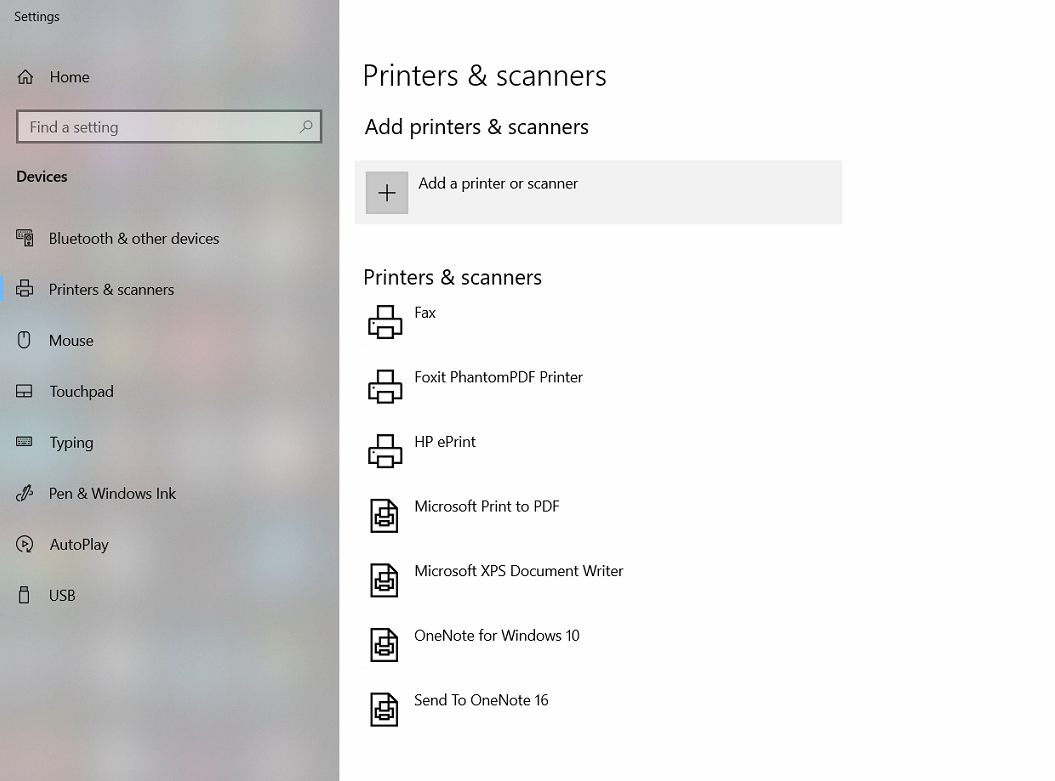

In the dialog box that opens, choose Add a printer or scanner

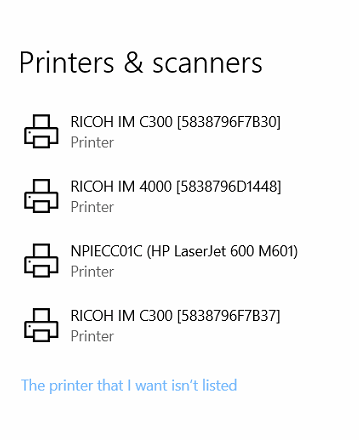

Click the blue link that says ‘The printer that I want isn’t listed’

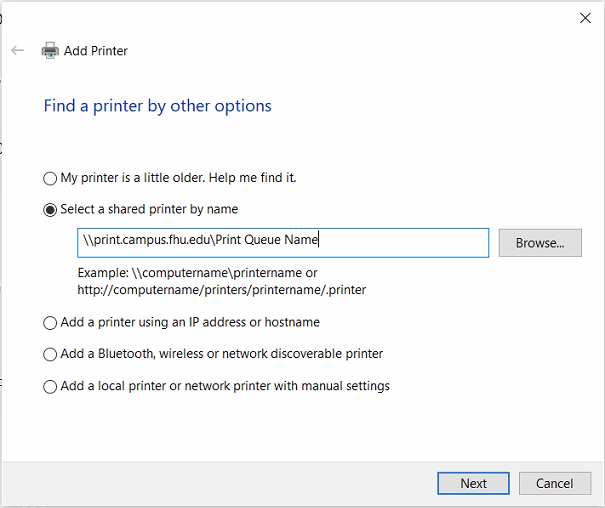

Click the radio button to the left of ‘Select a shared printer by name’

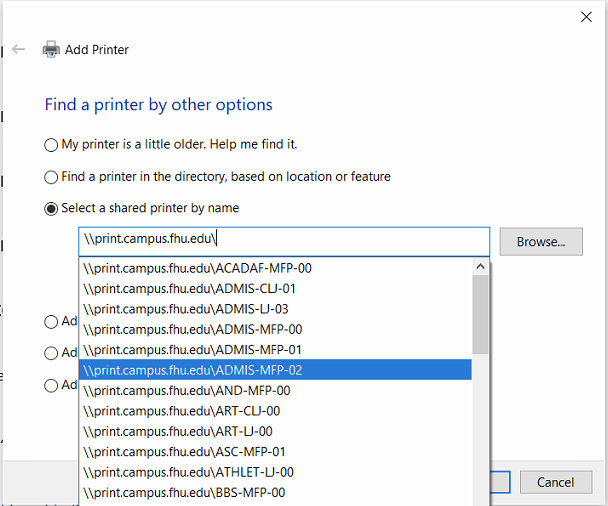

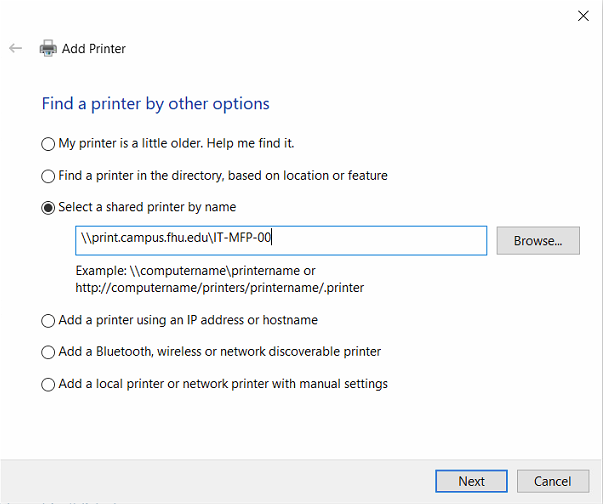

Type \\print.campus.fhu.edu\Print Queue Name.  The print queues for campus are listed below these instructions, so choose the queue for your area.

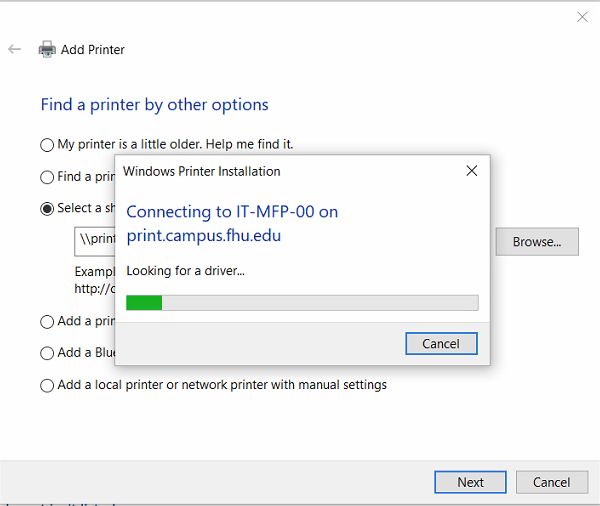

Click Next to begin adding the printer.  The software and driver will begin to download for your printer.

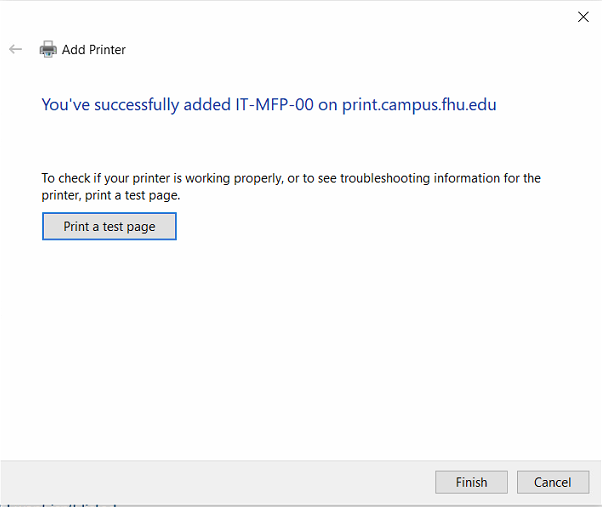

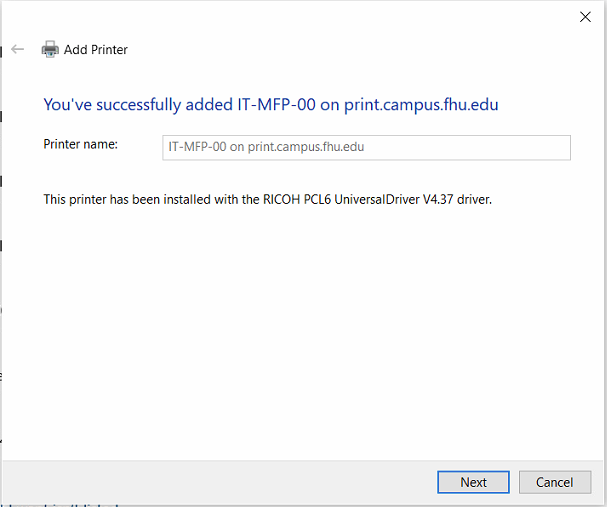

You will see this message when the printer has been successfully installed.

Click the ‘Print a test page’ button to send a test page to the newly installed printer.

Once the test page has been successfully printed, click Finish.

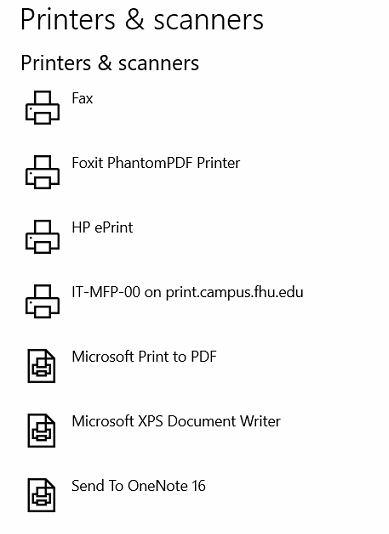

You will now see the printer in your Printers & Scanners list.

FHU Print server is Print.campus.fhu.edu

The following is the list of FHU printer queue names and their location.

ACADAF-MFP-00

    Loyd Auditorium 1st Floor in the Office of Academics

ADMIS-CLJ-01

    GC 2nd Floor Admissions Counselors

ADMIS-LJ-03

    GC 1st Floor Admissions, Susan White’s desk

ADMIS-MFP-00

    GC 1st Floor Financial Aid conference room

ADMIS-MFP-01

    GC 2nd Floor Admissions

ADMIS-MFP-02

    GC 1st Floor Admissions, Susan White’s desk

AND-MFP-00

    Anderson Science Center, Natalie Zlatovich Office

ART-CLJ-00

    Bulliner Clayton Visual Arts Center, Room 102

ART-LJ-00

    Bulliner Clayton Visual Arts Center, Room 104

ASC-MFP-01

    Associates Science Center, 1st Floor, room to the right of stairs

ATHLET-LJ-00

    Brewer Sports Center Coaches Office

BASEBALL-LJ-00

    Baseball Field House, Jesse Trask's Office

BBS-MFP-00

    FHU Mailroom

BBS-RISO-00

    FHU Mailroom

BFS-LJ-00

Old Main 1st floor Counseling Ofcs

BIB-MFP-00

GC 1st Floor Bible Dept, Kay Pack’s Office

BIB-MFP-03

GC 2nd Floor Bible Offices

BUS-MFP-00

Financial Services, 2nd Floor

CII-MFP-00

Library / Academic Resource Center, 3rd Floor, CII

Clinic-MFP-00

Rogers, Conger, Dodd Health Clinic

COM-MFP-02

    Old Main 2nd Floor A2 Faculty Offices

COM-MFP-04

    Old Main 3rd Floor Faculty Offices

Counseling-MFP-00

    Loyd 2nd Floor Counseling Offices

DEV-CLJ-00

    GC 2nd Floor Office of Financial & Estate Planning

DEV-LJ-00

    GC 2nd Floor Office of Financial & Estate Planning

DEV-MFP-00

    GC 2nd Floor Development Office

EDU-CLJ-00

    GC Lower Level, Undergraduate Education Office

EDU-MFP-00

    GC Lower Level, Undergraduate Education office

FAC-MFP-00

    Carter Facilities Building

FINSERV-MFP-00

    Finanical Services 1st Floor

FINSERV-MFP-01

    Finanical Services 1st Floor, Nina Mim’s desk

GANO Kitchen Printer

    Wallace Gano Dining Hall, Staff Offices

GRAD_ED-MFP-00

    GC Lower Level Graduate School of Education

GRAD_ED-MFP-00

    Bucy Center, Memphis campus

HIST-MFP-00

    Joy Simon McDaniel House 2nd Floor

IT-MFP-00

    Brown Kopel Lower Level, IT Dept

JSM-MFP-00

    Joy Simon McDaniel House 1st Floor

LIB-CC-00

    ARC 1st Floor Library Document Processing Room

LIBAV-MFP-00

    ARC 1st Floor Library Staff Offices

MUS-MFP-00

    Draughn Bldg 1st Floor Faculty Offices

NUR-MFP-00

    Associates Science Center 2nd Floor Nursing Office

OSS-MFP-00

    GC 1st Floor Registrar's Office

PRES-LJ-00

    Loyd Auditorium 1st Floor President’s Office

PSY-MFP-00

    Old Main 1st Floor Faculty Offices next to IT Closet

PSY-MFP-01

    Old Main Floor A1

SOB-MFP-01

    Brown Kopel 2nd Floor School of Business

SOB-MFP-02

    Brown Kopel 3rd Floor School of Business

STUSRV-MFP-00

    Burks Student Center, Staff Offices

THEATRE-LJ-00

    Theatre House 1st Floor, Cliff Thompson Office

TLHGRAD-MFP-00

    Thomas Landon House 1st Floor
